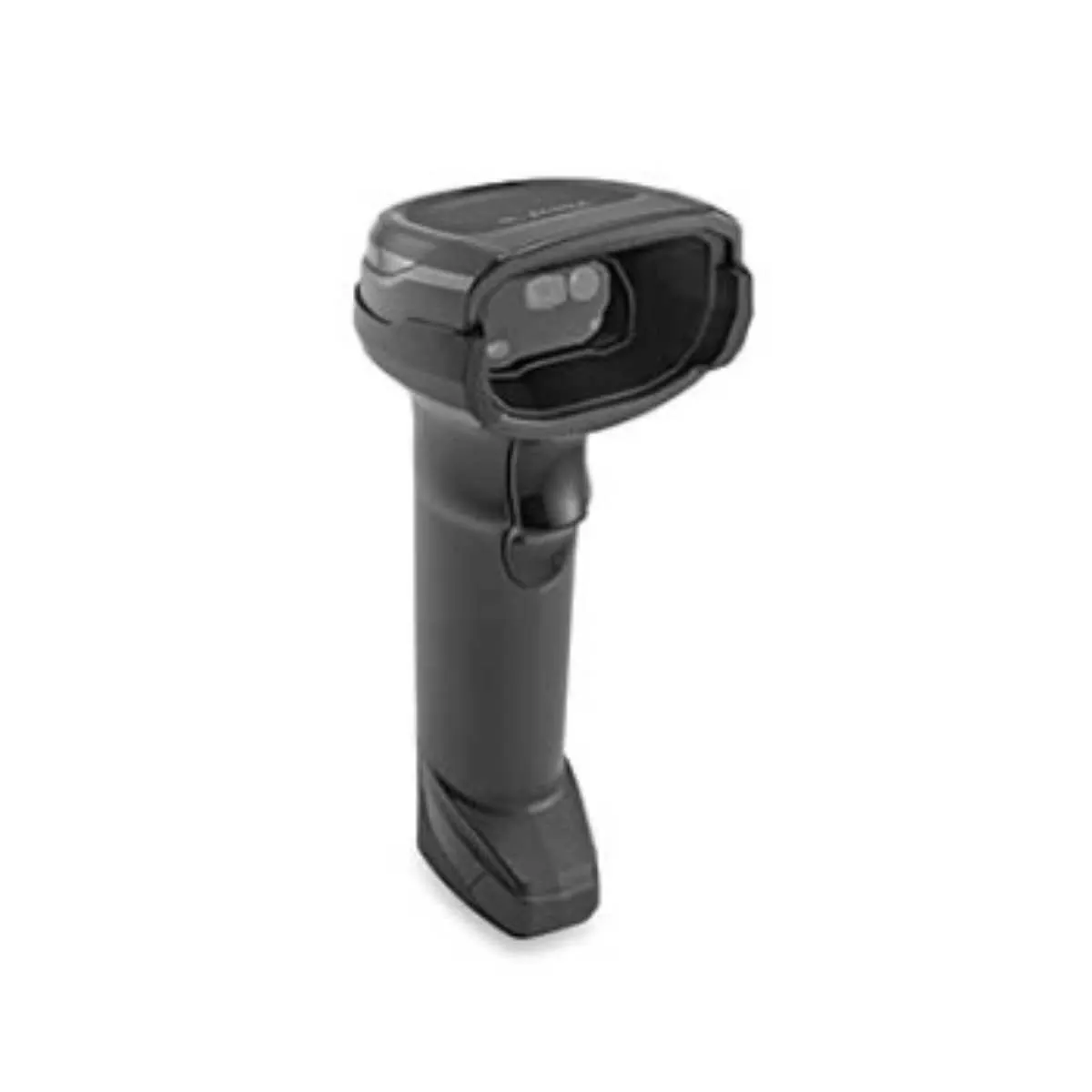

Scanners · Barcode scanners — Handheld — general purposeDS8100 Series Handheld Imagers
DS8100 Series handheld 1D/2D imagers (DS8108, DS8178). Please confirm the India model with us.
DS8100 Series handheld 1D/2D imagers (DS8108, DS8178). Please confirm the India model with us. Contact our team for current pricing, availability and delivery across India.
Specifications
| Scan technology | Imager, 1,280 x 960 pixel image sensor; 48° H x 37° V nominal field of view |
|---|---|
| Symbologies (1D) | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| Symbologies (2D) | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, SecurPharm, DotCode, Dotted DataMatrix |
| Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Scanning range | Up to 24 in./61 cm |
| UPC 13 mil (100%) decode range | 0 in./0 cm to 24.0 in./61.0 cm |
| Drop specification | Multiple drops at 6.0 ft/1.8 m to concrete |
| Tumble specification | 2,000 tumbles of 1.5 ft./0.5 m |
| IP sealing | IP52 |
| Weight | Corded DS8108: 5.4 oz./154 g; cordless DS8178: 8.3 oz./235.3 g |
| Dimensions | 6.6 x 2.6 x 4.2 inches (16.8 x 6.6 x 10.7 cm) |
Source: zebra.com (global site) · checked 2026-10-11. Figures come from the manufacturer's global site; India models and variants can differ, so please confirm with our team.
Key facts
- Handheld barcode scanner
Best for
- Retail checkout
Specifications are the manufacturer's published information. Warranty terms are set by the manufacturer — please check them before purchase or any service. Prices and availability on request.
Not sure this is the right fit? Tell us what you need and we will help you choose.
Questions about the DS8100 Series Handheld Imagers
What is the DS8100 Series Handheld Imagers?
DS8100 Series handheld 1D/2D imagers (DS8108, DS8178). Please confirm the India model with us.
Who is the DS8100 Series Handheld Imagers best for?
Retail checkout.
Where can I buy the DS8100 Series Handheld Imagers in Delhi NCR?
Request a quote from Karishma Computers, Ashok Bhavan, 93 Nehru Place, New Delhi 110019. We are open Monday to Saturday, 11 am to 7 pm. Call +91 98180 46744 or WhatsApp +91 84488 04041.
